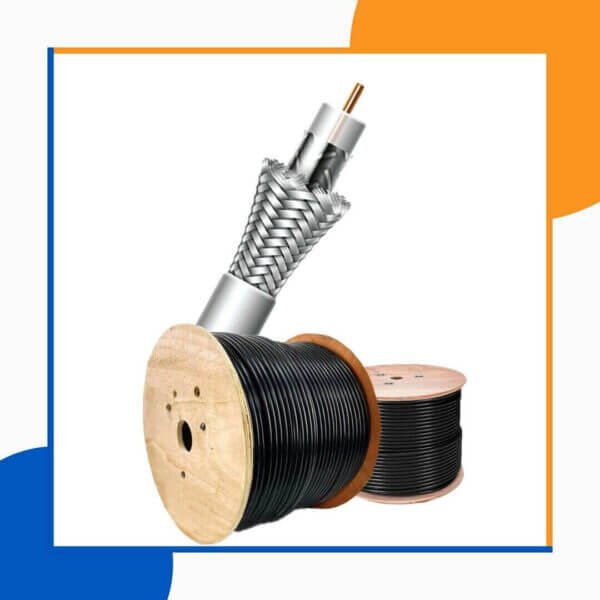

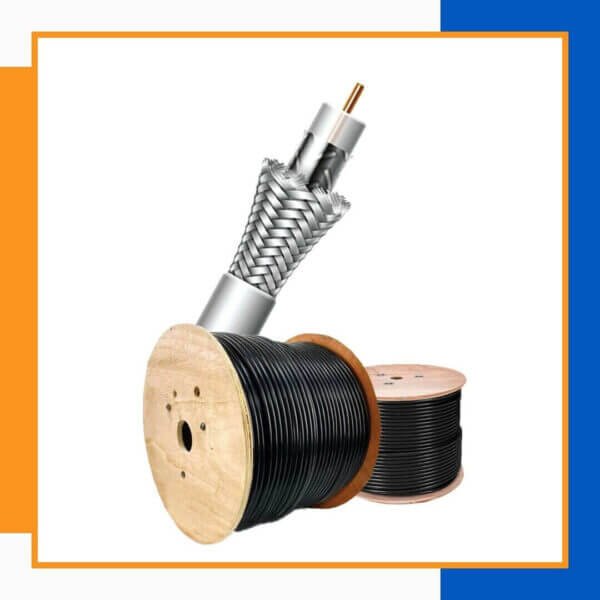

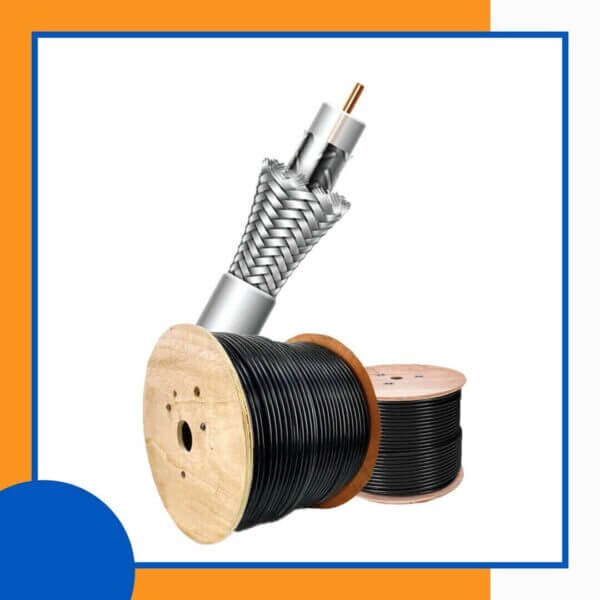

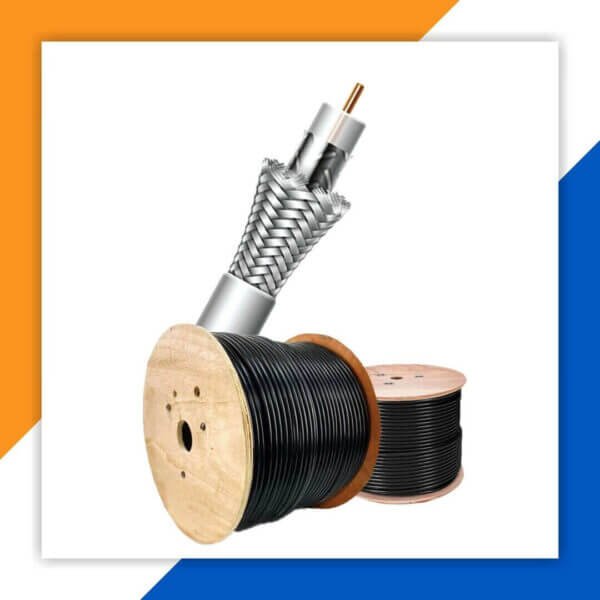

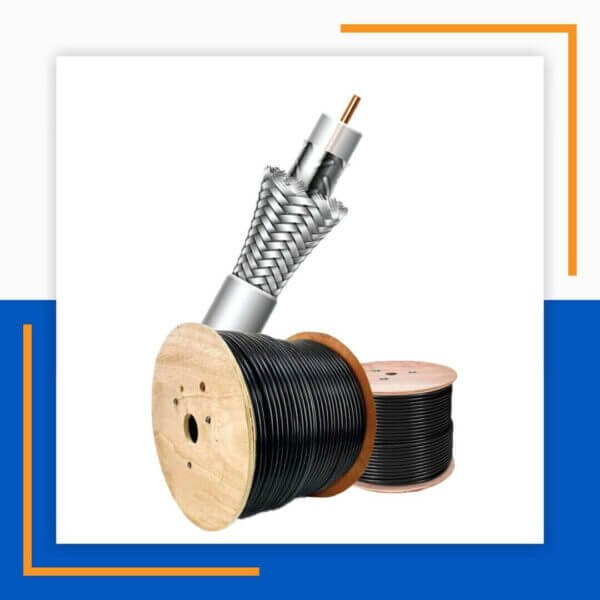

RG6 COXIAL CABLE 305M

RG6 COXIAL CABLE 305M

TMT GLOBAL Coaxial cable is Standard 75Ω( ohm ) with 98% full Braiding Support up to 3GHZ Frequency.
General Specification:

  • Inner Conductor : Material BC dia,mm 1.13
  • Foil Coverage : 98%
  • Braid : material CCS
  • Braid Coverage : 144*0.16
  • Dielectric : Material FPE dia,mm 4.8
  • Film Foil Type : Material CCS-Pet
  • Outer Sheath : Material PVC dia,mm 7.5
  • Model No. : FCI-4201
  • Products ID : FCI-R6XSCK
Share

Description

 RG6 COAXIAL CABLE

TMT GLOBAL provides high-Quality Coaxial cables for use in various industrial, indoor, and outdoor applications. Offering unique properties and benefits for different types of use, our Coaxial cable products can easily meet complex application requirements and specifications. TMTGLOBAL Coaxial cable is Standard 75Ω( ohm ) with 98% full Braiding Support up to 3GHZ Frequency.

Construction Parameters
inner conductor material BC foil coverage % 98
dia,mm 1.13 braid material CCS
dielectric material FPE braid coverage % 144*0.16
dia,mm 4.8 outer sheath material pvc
film foil type material CCS-pet dia,mm 7.5
Attenuation (at20⁰C)
at 5 MHz dB/100m 1,5
at 10 MHz dB/100m 2,1
at 30 MHz dB/100m 3,2
at 50 MHz dB/100m 4,1
at 200 MHz dB/100m 8,4
at 300 MHz dB/100m 10,3
at 470 MHz dB/100m 13,2
at 862 MHz dB/100m 18,2
at 1000 MHz dB/100m 19,8
at 1750 MHz dB/100m 23,9
at 2150 MHz dB/100m 26,0
at 2400 MHz dB/100m 31,7
at 3000 MHz dB/100m 36,5
structural Return Loss ( SRL)
at 5-470 MHz dB ˃30
at 470-1000 MHz dB ˃28
at 1000-2000 MHz dB ˃26
at 2000-3000 MHz dB ˃22
Screening Attenuation (SA)
at May-30 MHz mΩ/m 0,6
at 30-1000 MHz dB ˃85
at 1000-2000 MHz dB ˃90
at 2000-3000 MHz dB ˃85
DC resistance inner /outer cond. Ω/km 22,5 /15,8
 Loop resistance Ω/km 38,3
Max. Current (I eff) A 6,0
 sheath spark testing  kv 8,0
Ordering Information
Model No  Product ID Description
TMT-4201 TMT-R6XSCK RG6 COXIAL CABLE 305M

Specification PDF

FCI-4201
